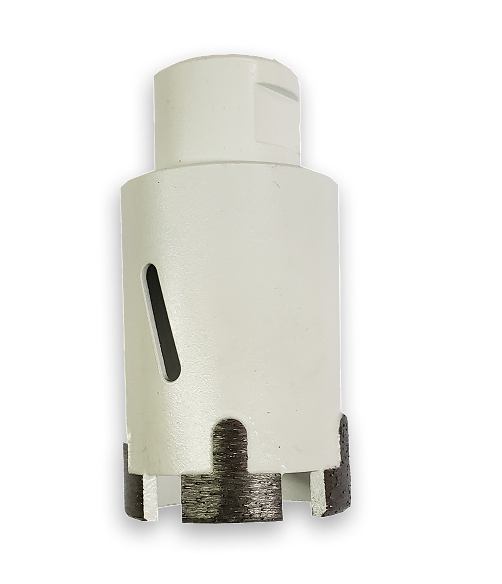

PAUCM Coring Bit for Ultra Compact Materials
-
PAUCM (# mm) - Example: PAUCM-6 for a 6mm (1/4”) coring bit
-
Porcelain, Porcelain Slab, Porcelain Paver, Natural Quartzite, Dekton
-
Variable Speed Grinder
-
¼” (6 mm)
5/16" (8 mm)
3/8” (10 mm)
½” (12 mm)
¾” (20 mm)
1” (25 mm)
1 ¼” (32 mm)
1 3/8" (35 mm)
1 ½” (38 mm)
1 5/8” (40 mm)
1 ¾” (45 mm)
2” (50 mm)
2 3/16" (55 mm)
2 ½” (64 mm)
3” (75 mm)
3 ½” (90 mm)
3 ¾” (95 mm)
4” (100 mm)
4 ¼” (110 mm)
4 ½” (115 mm)
5” (125 mm) -
This Coring Bit REQUIRES periodic Sharpening
Extensive use of this Coring Bit on softer materials will result in a shorter lifespan
To maximize this Coring Bits lifespan and cutting quality, we recommend using it on a Variable Speed Grinder. Due to the wide variability in material densities on the market, a Variable Speed grinder allows the user to adjust speeds on a project to project basis, ensuring the best possible results.
Although this coring bit is designed for both Dry and Wet Use, for sizes smaller than 12mm, it is recommended to use a water feed, to enhance the Coring Bits lifespan.
For optimal use, please refrain from applying excess pressure. The coring bit is designed to work its way through the material with minimal effort. Added pressure will often do more harm than good.

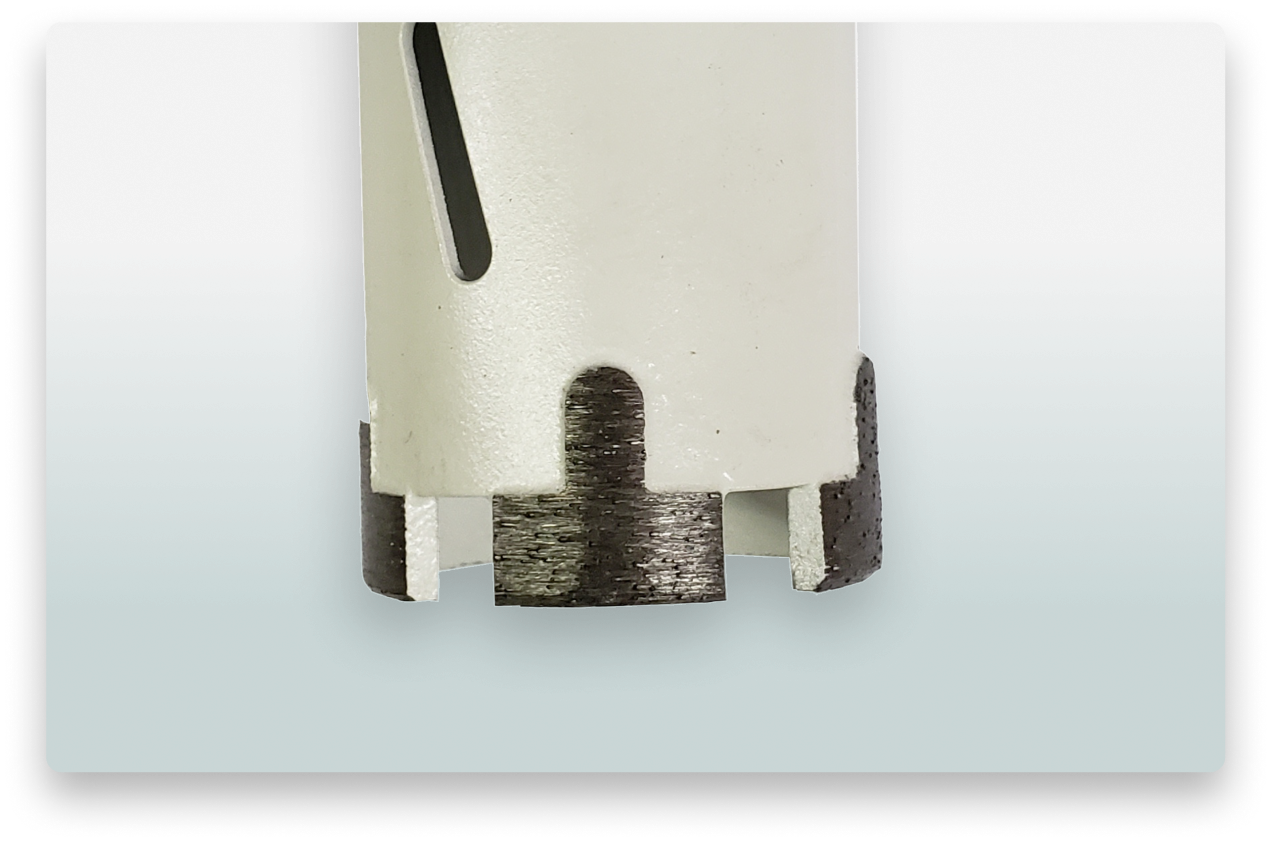

T-Slot Segment Design
The T-SLOT Segment is a feature that we added to this Industrial Grade Coring Bit to maximize it’s durability. By welding one of our T-Shaped Piranha Segments into the inserts on the coring bit frame, the PAUCM is able to withstand higher speeds, and more force, than most other coring bits on the market.

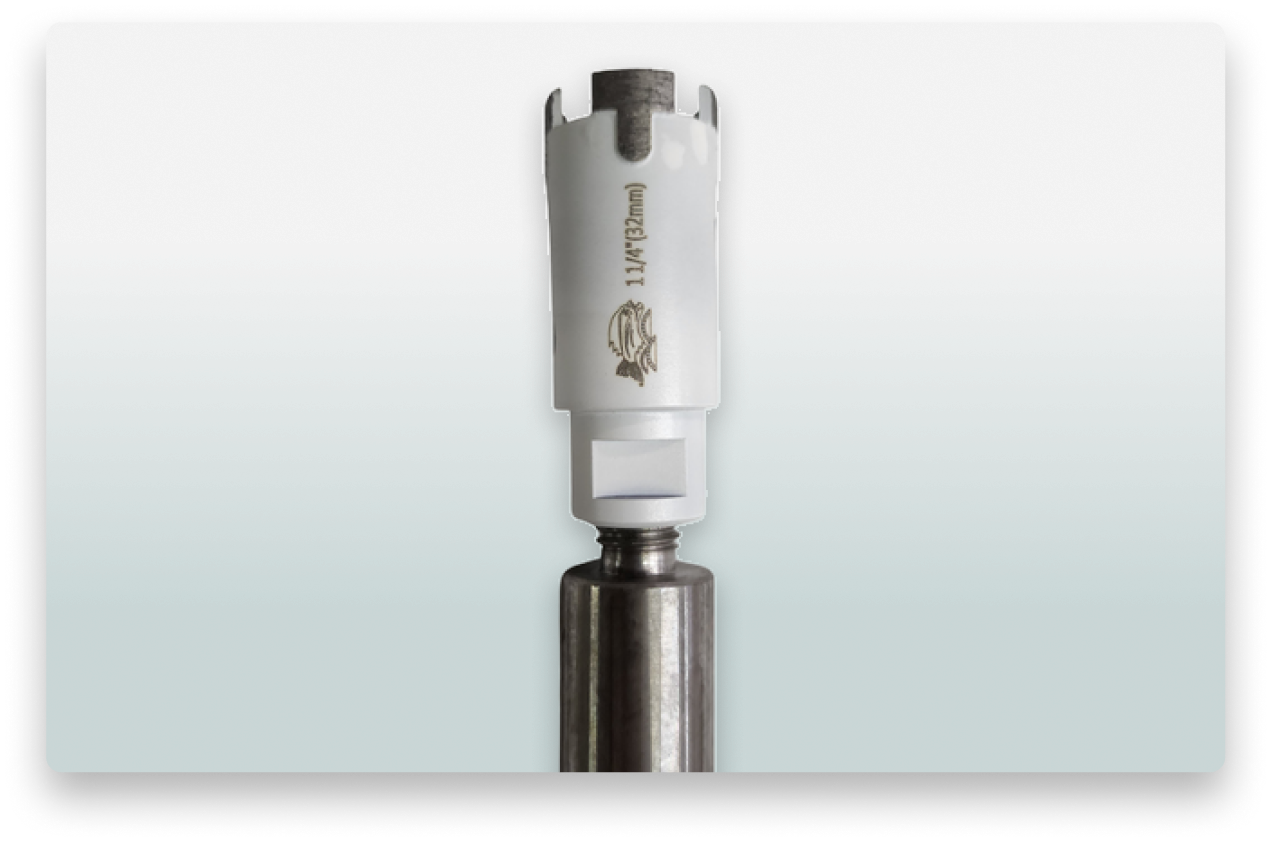

Compatible with Extender
The PAUCM can be mounted on both a 3” and 6” extender accessory, that allows to coring bit to reach even further than ever before.

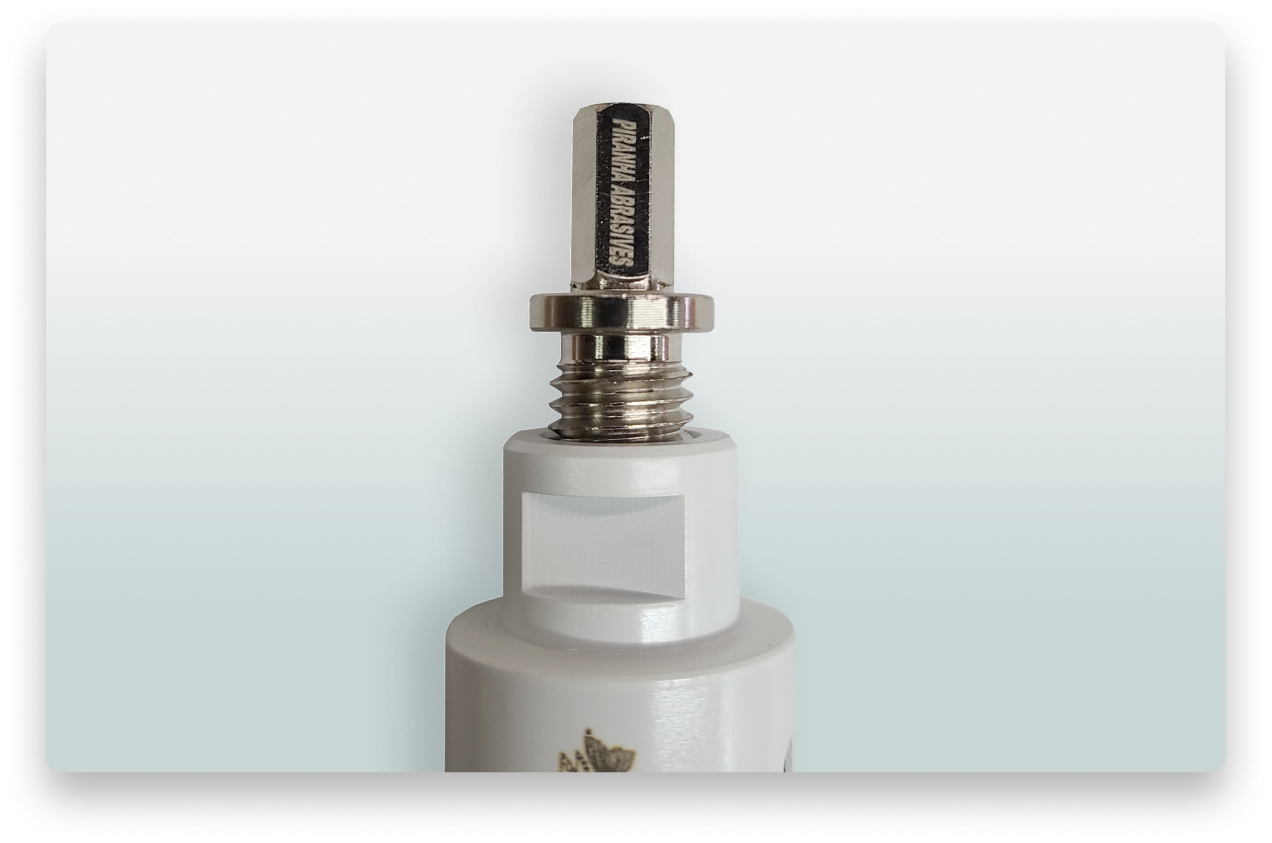

Convertible to Drill Use
With the Piranha Hex Shaft Adapter, the PAUCM can be converted for use on a Drill. Please note, this Coring Bit is NOT intended for use on an Impact Drill.

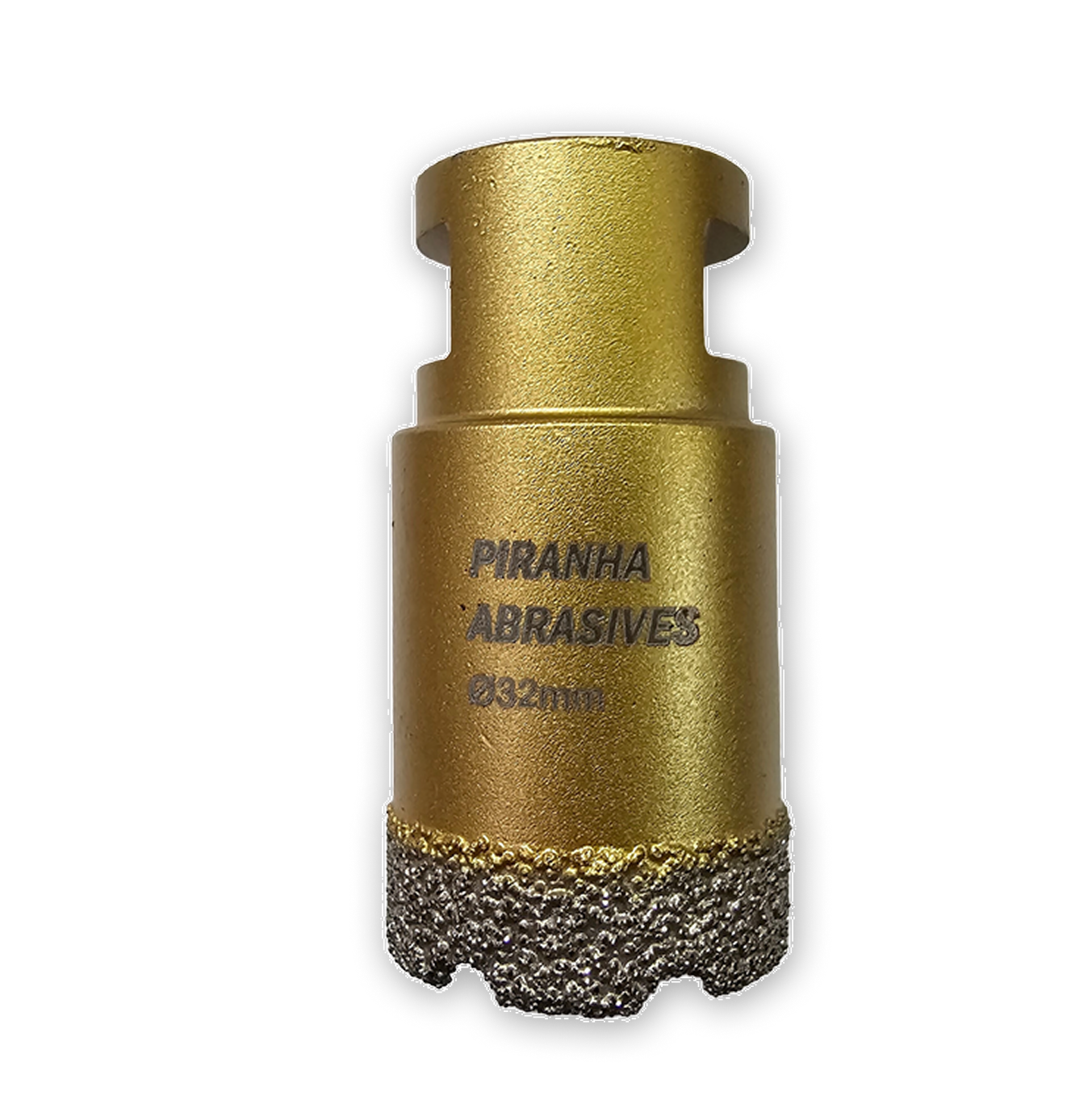

PAVBDB 5/8 x 11 Threaded Vacuum Brazed Coring Bit
-
PAVBDB (# mm) - Example: PAVBDB-6 for a 6mm (1/4”) coring bit
-
Marble, Ceramic, Porcelain, Glass
-
Variable Speed Grinder
-
¼” (6 mm)
5/16" (8 mm)
3/8” (10 mm)
½” (12 mm)
¾” (20 mm)
1” (25 mm)
1 ¼” (32 mm)
1 3/8" (35 mm)
1 ½” (38 mm)
1 5/8” (40 mm)
1 ¾” (45 mm)
2” (50 mm)
2 3/16" (55 mm)
2 ½” (64 mm)
3” (75 mm)
3 ½” (90 mm)
3 ¾” (95 mm)
4” (100 mm)
4 ¼” (110 mm)
4 ½” (115 mm)
5” (130 mm) -
This Coring Bit CANNOT be Sharpened
To maximize this Coring Bits lifespan and cutting quality, we recommend using it on a Variable Speed Grinder. Due to the wide variability in material densities on the market, a Variable Speed grinder allows the user to adjust speeds on a project to project basis, ensuring the best possible results.
Although this coring bit is designed for both Dry and Wet Use, for sizes smaller than 12mm, it is recommended to use a water feed, to enhance the Coring Bits lifespan.
For optimal use, please refrain from applying excess pressure. The coring bit is designed to work its way through the material with minimal effort. Added pressure will often do more harm than good.

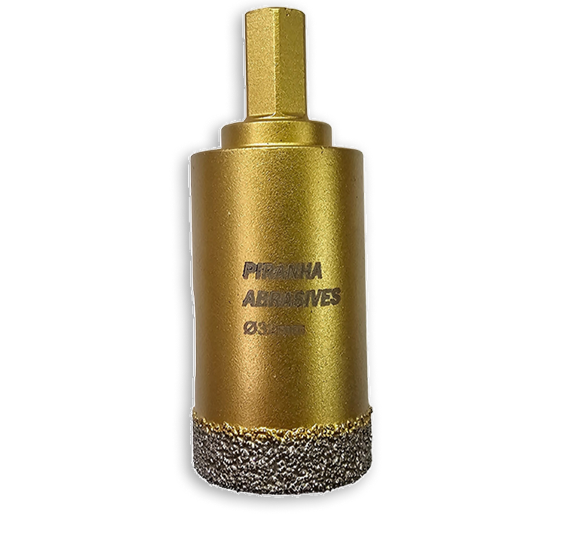

PAVBDB Hex Shaft Vacuum Brazed Coring Bit
-
PAVBDB (# mm) HEX - Example: PAVBDB35-HEX for a 35mm (1 3/8”) coring bit
-
Marble, Ceramic, Porcelain, Glass
-
Drill
-
¼” (6 mm)
5/16" (8 mm)
3/8” (10 mm)
½” (12 mm)
¾” (20 mm)
1” (25 mm)
1 ¼” (32 mm)
1 3/8" (35 mm)
1 ½” (38 mm)
1 5/8” (40 mm)
1 ¾” (45 mm)
2” (50 mm)
2 3/16" (55 mm)
2 ½” (64 mm)
3” (75 mm)
3 ½” (90 mm)
3 ¾” (95 mm)
4” (100 mm)
4 ¼” (110 mm)
4 ½” (115 mm)
5” (130 mm) -
10 mm Hex Shaft
This Coring Bit CANNOT be sharpened.
Although this coring bit is designed for both Dry and Wet Use, for sizes smaller than 12mm, it is recommended to use a water feed, to enhance the Coring Bits lifespan.
For optimal use, please refrain from applying excess pressure. The coring bit is designed to work its way through the material with minimal effort. Added pressure will often do more harm than good.

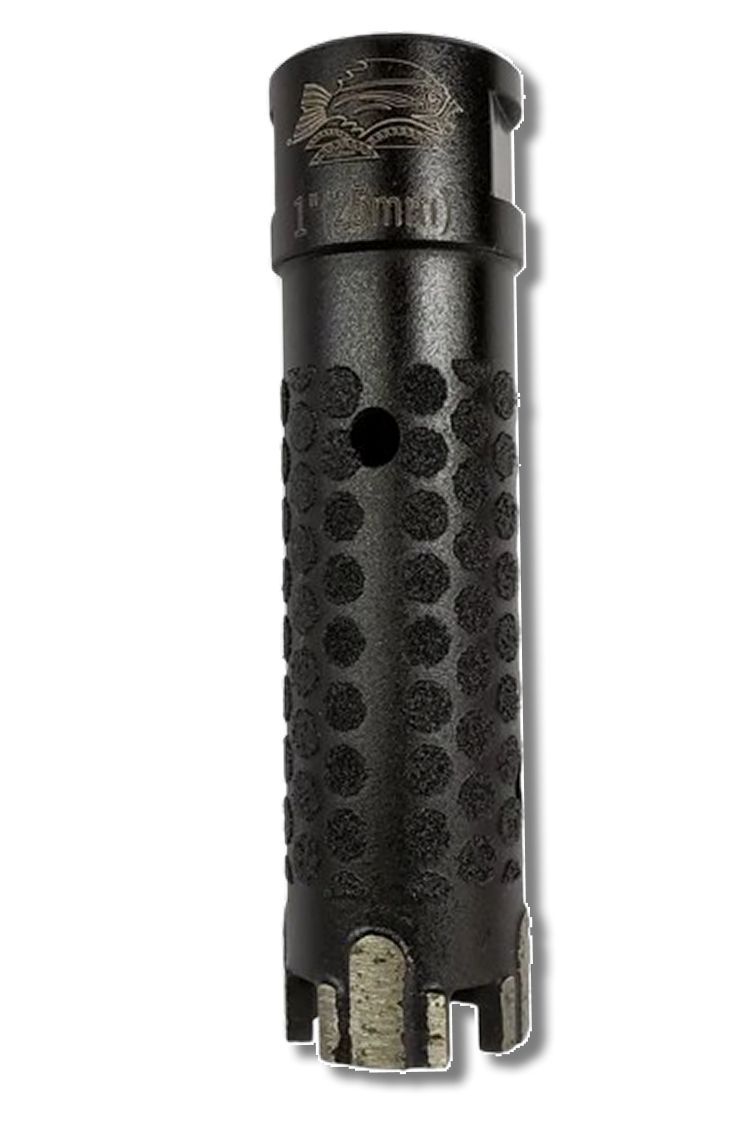

PACBKO 5/8 x 11 T-Slot Coring Bit with Side Protection
-
PACBKO (#)T - Example: PACBKO1.25T for a 32mm (1 1/4”) coring bit
-
Engineered Stone, Granite
-
Variable Speed Grinder
-
½”
5/8”
¾”
1”
1 ¼”
1 3/8"
1 ½”
1 ¾”
2”
2 1/4"
2 ½”
2 3/4”
3”
3 1/4”
3 ½”
3 ¾”
4”
4 ¼”
4 ½”
5” -
This Coring Bit does not require periodic Sharpened
To maximize this Coring Bits lifespan and cutting quality, we recommend using it on a Variable Speed Grinder. Due to the wide variability in material densities on the market, a Variable Speed grinder allows the user to adjust speeds on a project to project basis, ensuring the best possible results.
Although this coring bit is designed for both Dry and Wet Use, for sizes smaller than 12mm, it is recommended to use a water feed, to enhance the Coring Bits lifespan.
For optimal use, please refrain from applying excess pressure. The coring bit is designed to work its way through the material with minimal effort. Added pressure will often do more harm than good.
For Concrete

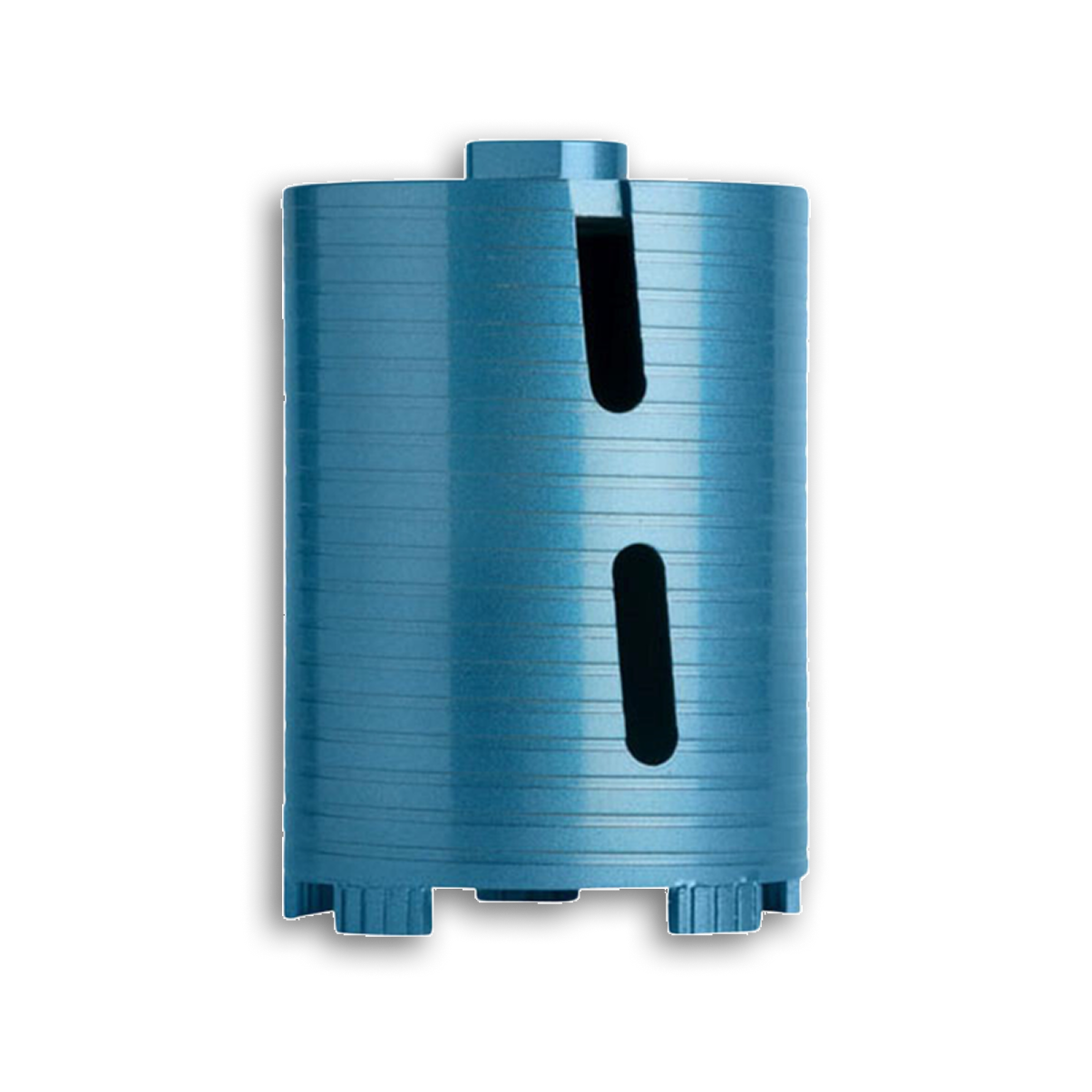

PACB DRY CONCRETE Coring Bit
-
PACB (# mm) - Example: PACB25 for a 25mm (1”) coring bit
-
Concrete
-
Variable Speed Grinder
-
9.5”L (Inner) x 7/8” (22 mm) Dia.
9.5”L (Inner) x 1" (25 mm) Dia.
9.5”L (Inner) x 1 ¼” (32 mm) Dia.
9.5”L (Inner) x 1 ½” (38 mm) Dia.
9.5”L (Inner) x 1 ¾” (44 mm) Dia.
9.5”L (Inner) x 2” (50 mm) Dia.
9.5”L (Inner) x 2 1/4" (57 mm) Dia.
9.5”L (Inner) x 2 ½” (64 mm) Dia.
9.5”L (Inner) x 3” (75 mm) Dia.
9.5”L (Inner) x 3 ½” (89 mm) Dia.
9.5”L (Inner) x 4” (100 mm) Dia.
9.5”L (Inner) x 4 ½” (115 mm) Dia.
9.5”L (Inner) x 5” (125 mm) Dia.
9.5”L (Inner) x 6” (152 mm) Dia. -
This Coring Bit does not require sharpening
For optimal use, please refrain from applying excess pressure. The coring bit is designed to work its way through the material with minimal effort. Added pressure will often do more harm than good.
Kits and Special Bits
Something Unique

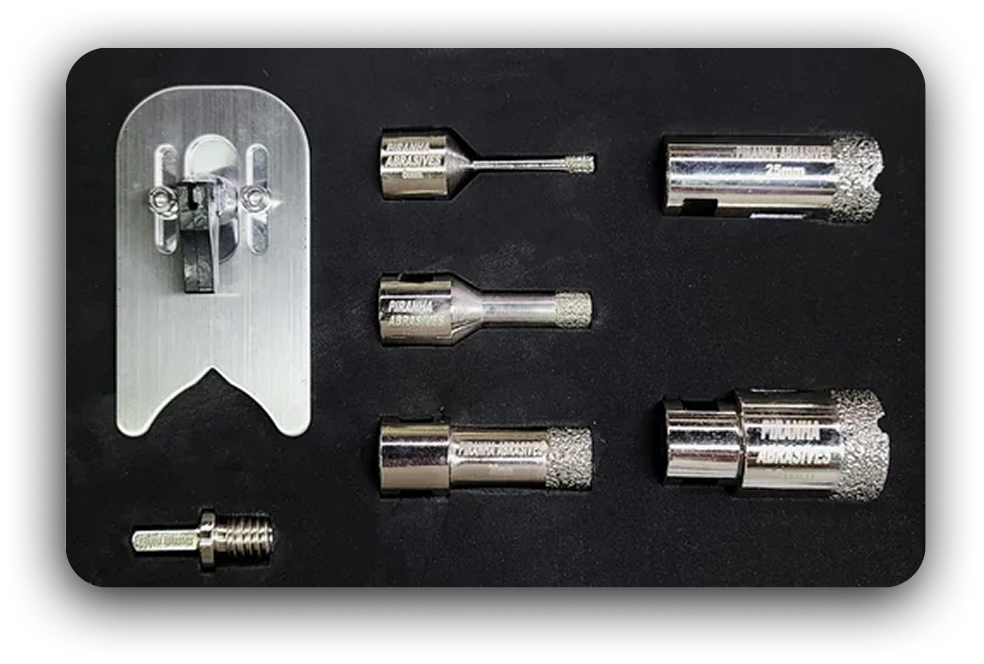

7 PC VACUUM BRAZED CORING BIT SET
-
PAVB-7PC
-
Marble, Ceramic, Porcelain, Glass
-
Variable Speed Grinder / Drill
-
6mm Coring Bit
12mm Coring Bit
20mm Coring Bit
25mm Coring Bit
32mm Coring Bit
Stainless Steel Drill Guide
Piranha Tooth Hex Shaft Adaptor -
This Coring Bit CANNOT be sharpened.
Although this coring bit is designed for both Dry and Wet Use, for sizes smaller than 12mm, it is recommended to use a water feed, to enhance the Coring Bits lifespan.
For optimal use, please refrain from applying excess pressure. The coring bit is designed to work its way through the material with minimal effort. Added pressure will often do more harm than good.

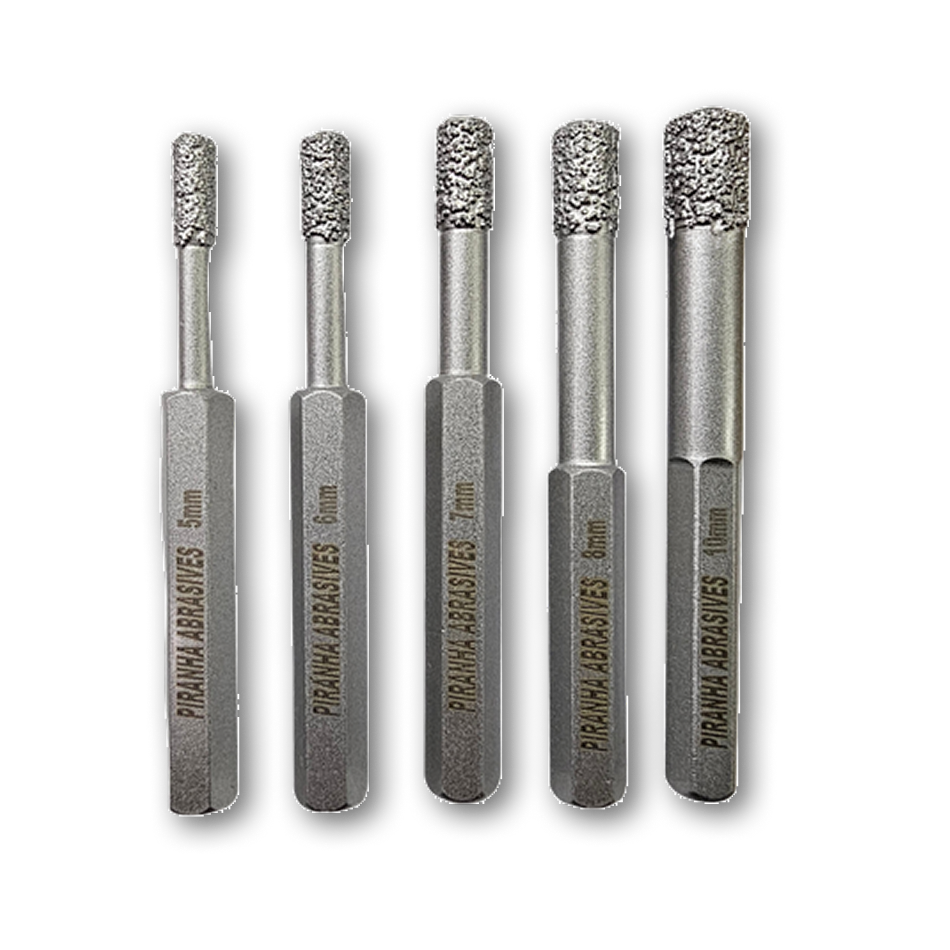

5 PC VACUUM BRAZED DRILL BIT SET
-
PAVBDB-80 HEX SET
-
Marble, Ceramic, Porcelain, Glass
-
Drill
-
5mm Coring Bit
6mm Coring Bit
7mm Coring Bit
8mm Coring Bit
10mm Coring Bit -
10 mm Hex Shaft
This Coring Bit CANNOT be sharpened.
Although this coring bit is designed for both Dry and Wet Use, for sizes smaller than 12mm, it is recommended to use a water feed, to enhance the Coring Bits lifespan.
For optimal use, please refrain from applying excess pressure. The coring bit is designed to work its way through the material with minimal effort. Added pressure will often do more harm than good.

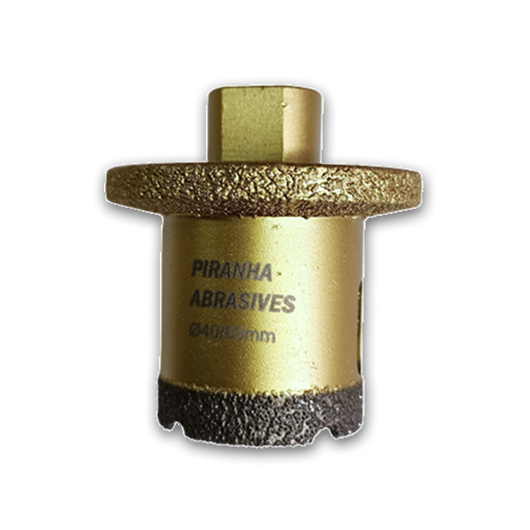

PA-CSB COUNTER SINK BIT
-
PA-CSB-40/50
PA-CSB- 40/60
PA-CSB-40/64 -
Marble, Ceramic, Porcelain, Engineered Stone, Granite
-
Variable Speed Grinder
-
1 1/2” (40 mm) to 2” (50 mm)
1 1/2” (40 mm) to 2 1/4” (60 mm)
1 1/2” (40 mm) to 2 1/2” (64 mm) -
This Coring Bit CANNOT be sharpened
For optimal use, please refrain from applying excess pressure. The coring bit is designed to work its way through the material with minimal effort. Added pressure will often do more harm than good.
